Product Name: HOWO 8x4 Dump Tipper Truck with extended cab
Product Specification:
Brand: SINOTRUK HOWO
Model: ZZ3317N3867A
Emission Standard: EURO II, EURO III, EURO IV, EURO V
Driving Type: 8x4 / 12 Wheels / 4 Axles
Engine HP: 290HP / 336HP / 371HP / 400HP
Transmission:HW19710, 10 Forward, 2 Reverse
Cargo Body Volume: 16CBM / 18CBM / 20CBM or customized.
Certificate: CCC, BV, SGS, ISO9001, WMI
Specification Sheet:
| Typical truck model | ZZ3317N3867A | ZZ3257N3847A | |||||
Cab | Model | HW76 | |||||
Type | HW76 extend cab, one berth, with A/C all steel forward control, 55°hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt. | ||||||
Engine | Model | WD615.87 | WD615.69 | WP12.400E201 | |||
Rated power | 290HP | 336HP | 400HP | ||||
Displacement | 9.726L | ||||||
Type | 6 cylinder in-line with water cooling, turbo-charging & intercooling | ||||||
Wheelbase | 3200+1400mm | 3400+1400mm | 36000+1400mm | 3800+1400mm | |||
Cargo body size | 4800x2300x1200mm | 5200x2300x1200mm | 5400x2300x1500mm | 5600x2300x1500mm | |||
Clutch | Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance | ||||||
Transmission | SINOTRUK HW series 10/12/16 speed transmission, 10 forward and 2 reverse | ||||||
Front axle | Steering axle with double T-cross section HF9 | ||||||
Drive axle | Pressed axle housing, central single reduction HC16/AC16 | ||||||
Chassis | Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe | ||||||
Steering | Germany ZF, hydraulic steering with power assistance | ||||||
Brakes | Service brake: dual circuit compressed air brake | ||||||
Wheel & Types | Rims: 8.0-20, 10 hole-steel | ||||||
Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW Batteries: 2×12, 165Ah | ||||||
Product Pictures Show:
Truck Detail Show：
Cargobox
Overall Dimensions(L×W ×H)（mm）（unloaded）：10245x2496x3505
Cargo body inner size (L×W×H) (mm)： 7300×2300×1500mm Sand body, HYVA Front lifting
CAB
HOWO76 New face cab(one bed, with air conditioner), all-steel forward control,55ºhydraulically
tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with
casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable
co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with
stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point
support fully floating suspension and shock absorbers.
Engine
WD615.47 (Steyr technology, made by China National Heavy Duty truck Group)
9726cc Diesel engine Emission standard Euro2
water-cooled，four strokes，6 cylinders in line with water cooling，turbocharged and inter-cooling, directly injection
Power max(kw/rpm) 273kw(371HP)/2200
Front axle HF9 Rear axle HC16
Inter cooling system
Fuel tanker capacity（L）:350

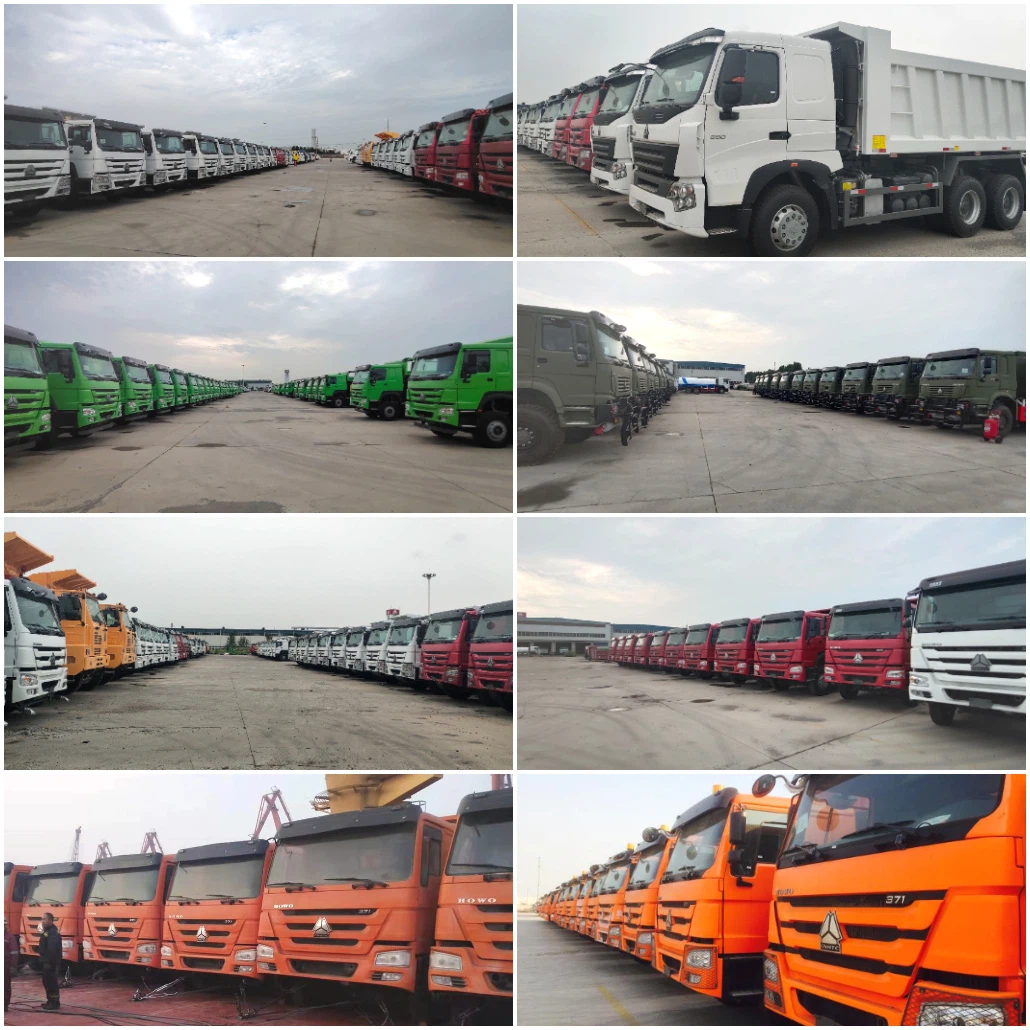

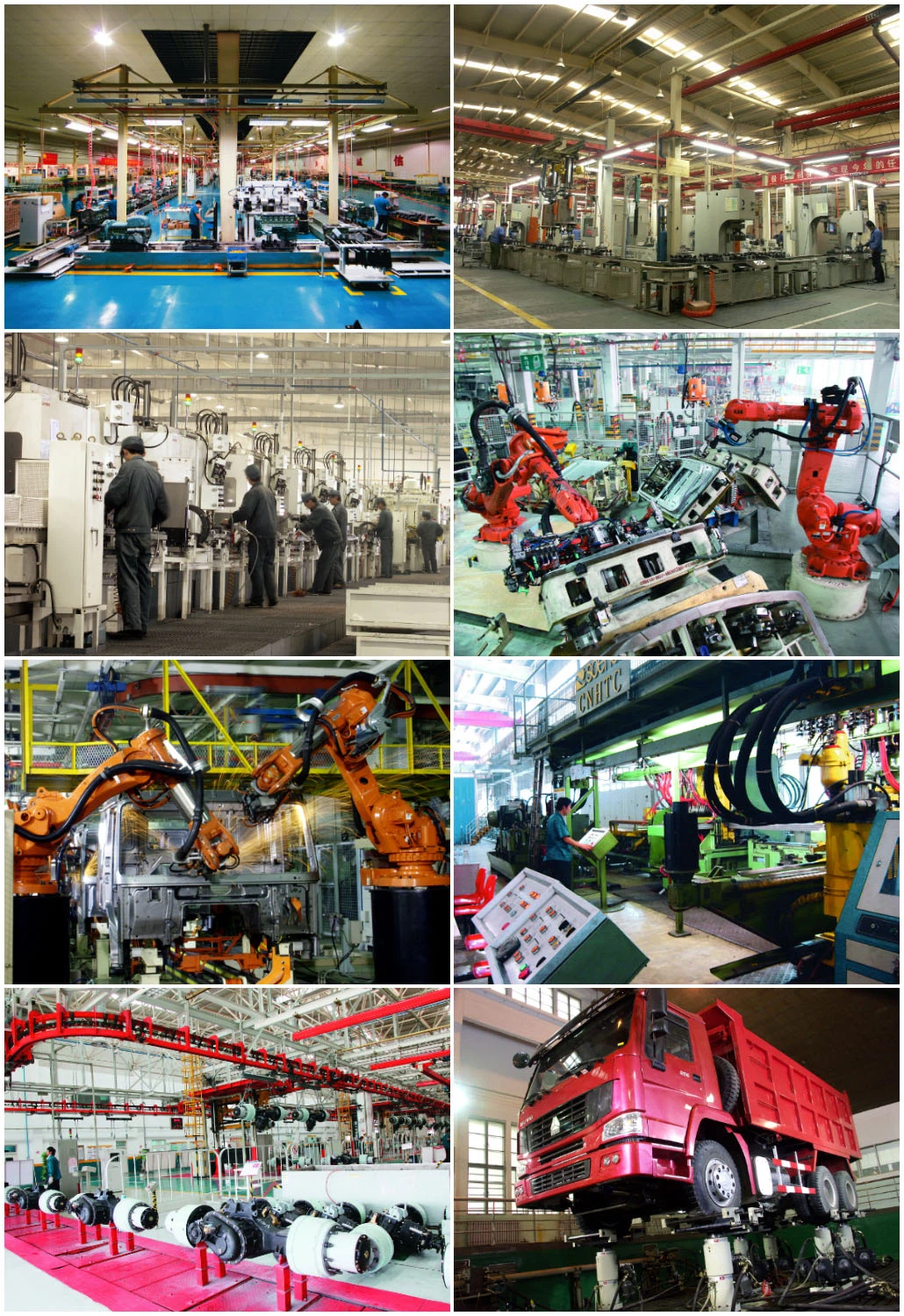

Company&Workshop Photo:
Exhibition Show Photo:
Shipping:
Nude packing, shipment by roro or bulk vessel, or load in container in SKD according to clients request.
FAQ:
Q: How do you control the quality of product?
A:Our Factory has standard production workshop,our workers are well trained. Every unit of product undergoes a rigorous inspection process.We will reconditioned our truck and machine in professional line.
Q: Do you accept custom order? What's is your MOQ order?
A:Yes, we do, our MOQ is 1 unit.
