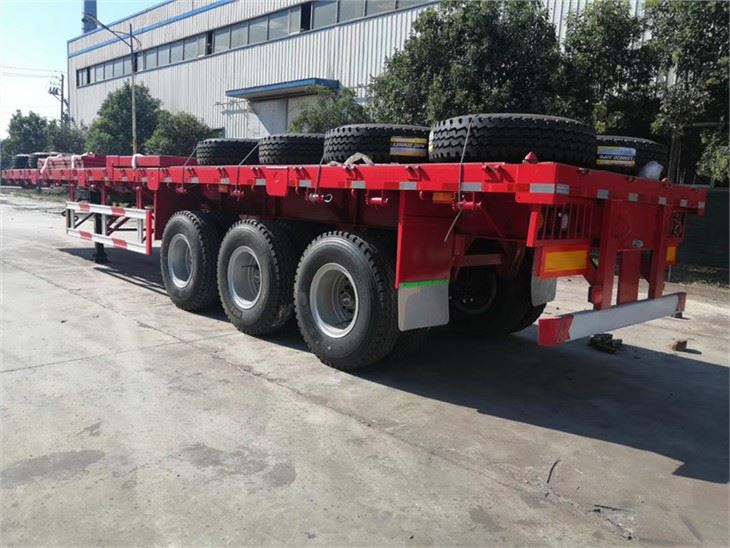

Flatbed Full Trailer

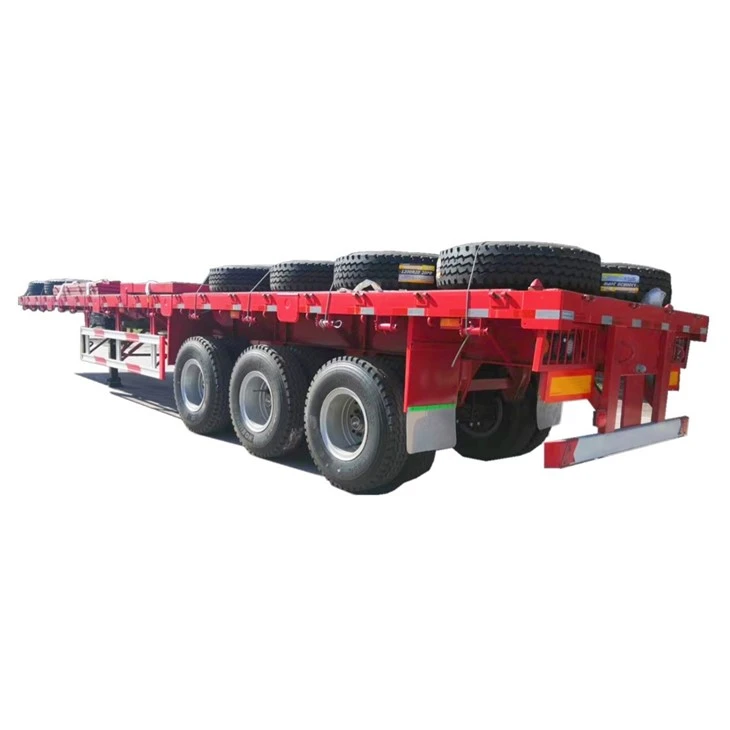

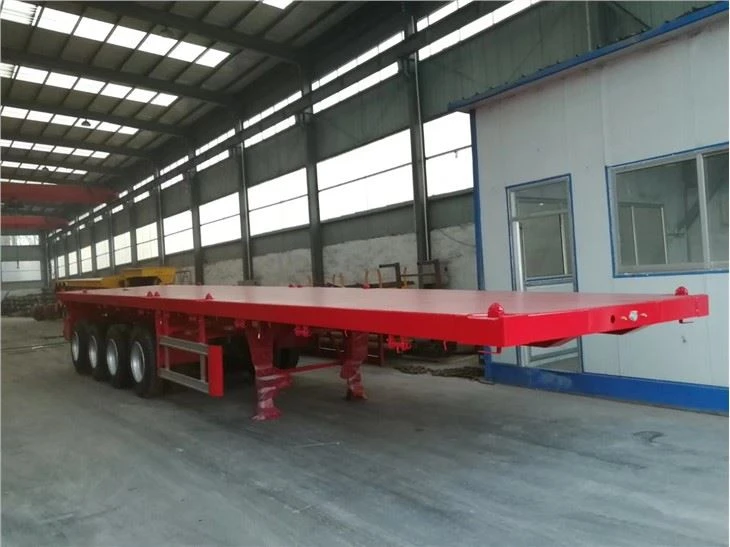

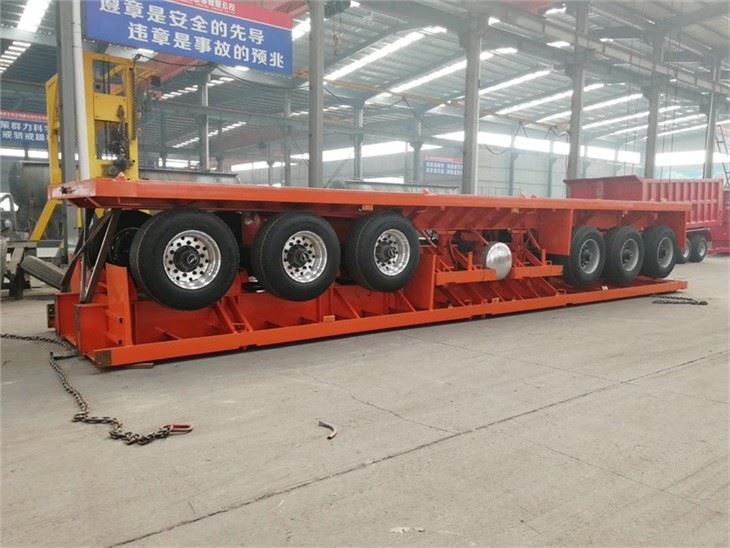

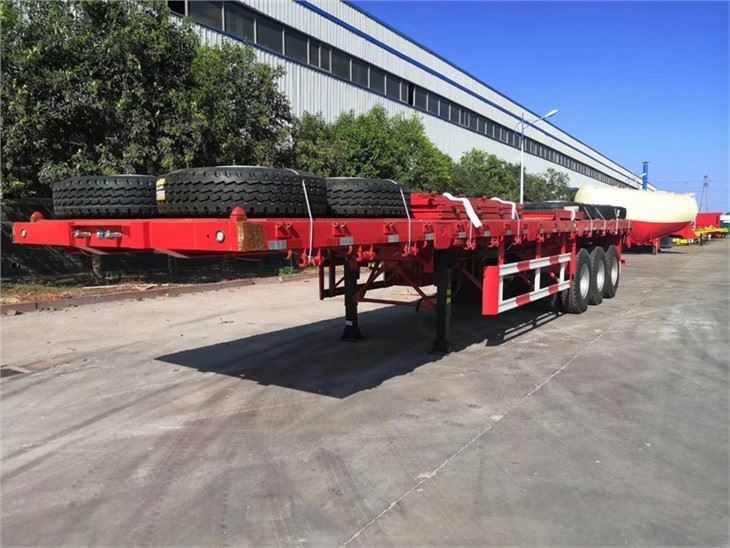

40ft Flatbed Container Semi Trailer With 3 axles
Applications: could transport 1*20ft container, 2*20ft container or 1*40ft container or bulk cargo.

Send Inquiry

Description

Product description

Flatbed trailer also named 2 axle 40ft or 20ft used trailer container and container semi trailer for sale, double axle trailer, 40ft flatbed trailer, 40ft trailer, 40ft trailer. It is used to transport 1x40ft or 2x20ft containers, cargo, etc. Loading capacity: 45 tons. Depending on your needs, I can choose between BPW axles or FUWA axles, air suspension or leaf spring suspension. We use 6 large double air chambers. Depending on your needs, we can design 4, 8 or 12 container twist locks.

Specifacation of Semi Trailer：

Overall (LWH)	1250025001530mm
Payload	50tons
Main Beam	High strength low alloy Q345 steel
Floor	3mm checkered plate
Side beam:	16# channel steel
King Pin	2" (50#) high tensile steel bolted type
Landing Leg	28T capacity
Suspension	American Type Heavy duty under mount tri-axle suspension with equalizers with 10 layers leaf spring(width: 90mm, thick: 13mm)
Axle	150x150 Square axle with 13 tons capacity. 3 pieces.
Tire	12R22.5 Tire,12pcs, China Famous Brand.
Rim	9.00*22.5, 10 Holes ISO, 12pcs
Brake System	Dual air brake system, WABCO relay emergency valve.
Brake Chamber	Type 30/30 on the rear two axles, Type 30 on front axle.
Electrical System	24 volt lighting system with modular wiring harness, 7 way ISO receptacle in front of the front bolster, norms NO.1185, Chinese standard.
Twist Lock	12 units, ISO Standard.
Spare Tire Carrier	Equipped two sets per trailer
Spare Tire	1 unit
Side Guard	Standard
Tool Box	1 unit, 1m long.
Light & reflector	Rear light, rear reflector, turn indicative light, side reflector,fog lamp,number plate light
Painting	Sandblasted, anti-rust chassis surface with 1 layer of anti-corrosive primer and 2 layers of top coats
